Product Overview

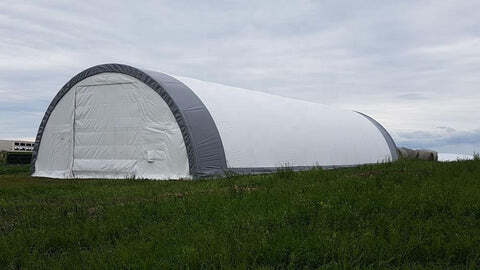

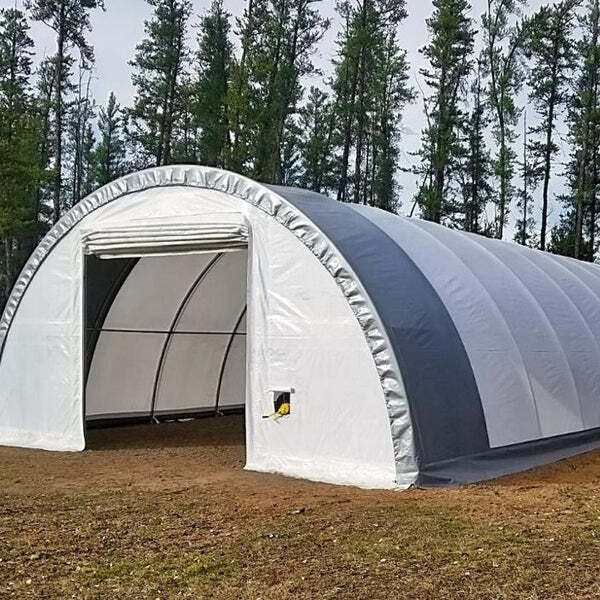

The Gold Mountain Single Truss Arch Storage Shelter W30’xL65’xH15’ is the perfect choice for anyone looking for a reliable and durable storage solution. This truss construction storage shelter is designed to be resistant towards water, UV, and fading, and can last up to 7-10 years under the right conditions. It features a freestanding style, mechanical doors at both ends, and a huge capacity for trucks, automobiles, and more bulk storage. This storage shelter will protect your belongings from wind, snow, and rain, and has a CSA/TUV Snow Rating Test Report and SGS fabric Certificate to guarantee its quality. Whether you need to store equipment, materials, or recreational items, the Gold Mountain Single Truss Arch Storage Shelter W30’xL65’xH15’ is the perfect choice.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tighten before next winter.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
This product is 300g/11 oz PE material, white color green edge design. For other options, please contact our customer service.
|
Product Dimension |
9.15m*20m*4.5m/30'*65'*15' |
|
Floor Footprint |
181m2/1950ft2 |
|
Highest Height |
4.5m/15’ |
|
Frame Material |
Galvanized Steel |
|
Cover Material |
PVC/PE |
|
Main Arch Tube Diameter |
42mm/1.65'' |
|
Main Arch Tube Thickness |
2mm/0.08'' |
|
Main Arch Space |
2m/6.56' |
|
Purlin Tube Diameter |
40mm/1.57'' |
|
Purlin Tube Thickness |
1.5mm/0.06'' |
|

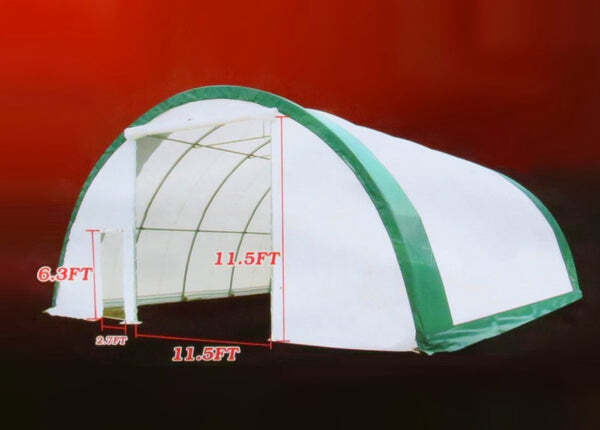

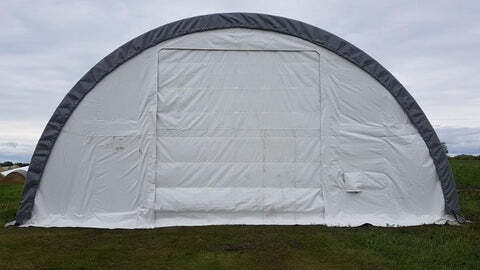

Door Size |
3.5m*3.5m/11.4'*11.4' |
Snow Rate Test Result:
|
306515R |
Test Load |
Deflection |
|||
|
Material |

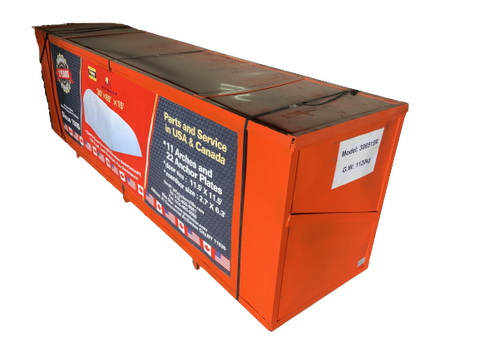

Package Size |
Package Weight |
|
300gPE |
2.95m*0.75m*0.98m/116.14"*29.53"*38.58" |
1120kg/2464lbs |
|
450gPVC |
2.95m*0.75m*0.98m/116.14"*29.53"*38.58" |
1245kg/2739lbs |
|
500gPVC |
2.95m*0.75m*0.98m/116.14"*29.53"*38.58" |
1185kg/2607lbs |
- Please have a forklift or equivalent ready for unloading
We've got you covered with comprehensive warranties for all our shelters:
- All shelters include full coverage for the frame.
- The tarpaulin material comes with a basic 2-year warranty, with some models offering prorated protection.
Single Truss (PE Material):
2-year warranty for both the frame and tarpaulin material.
Single Truss (PVC Material):
3-year warranty for the frame
2-year warranty for the tarpaulin material + 1-year prorated protection.
Double Truss:
5-year warranty for the frame
2-year warranty for the tarpaulin material + 3-year prorated protection.
Double Truss "M" Style:
8-year warranty for the frame
2-year warranty for the tarpaulin material + 6-year prorated protection.
